Pellet Mill Production Line
Processing material:wood,biomass,rice Hulls,corn Straw,sawdust,wood Shavings,tree Bark,peanut Hull,crop Straw, etc.

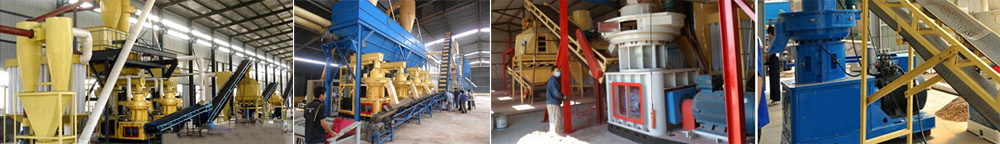

Equipment configuration:A complete pellet mill production line for making pellets including: Raw materials preparation, material crushing, drying (if the raw material contains moisture of more than 18%), pellets pelletizing, pellet cooling, pellets packing.
Get a Quote
Chat Online
Production Process of Complete Pellet Mill Production Line
Raw materials preparation, material crushing, drying (if the raw material contains moisture of more than 18%), pellets pelletizing, pellet cooling, pellets packing.
1.Crushing Process: Because of the best size of raw materials in pelletizing is 3-5mm. So, based on different materials, wood crusher is necessary. After the material being crushed by wood crusher, the output size can be diameter3-5mm that is suitable for further processing.
2.Drying Process: The best moisture content to pelletizing is about 11-17%. So before pelletizing, a drying machine is needed to make the moisture content reaches the required standards.

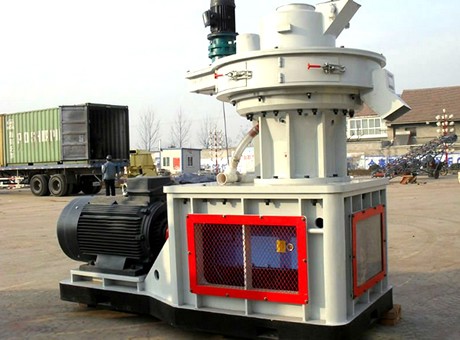

3.Pelletizing Process: After crushing and drying, the raw materials can be put into wood pellet mill, wood pellet mill is the significant part of the wood pellet production line, and has reliable and stable performance. Capacity ranges from 1T to 10T per hour.
4.Cooling Process: After pelletizing process, the temperature of wood pellets is between 60-80 degrees and the moisture content is close to 15%. So a cooler must be used to reduce their surface temperature and the moisture content which makes the wood pellets easy to store, meanwhile helps screen good and pure pellets.
Advantages of Pellet Mill Production Line
1. Simple and reasonable structure, easy maintenance and reliable performance;
2. Equipped with automatic lubrication system that is energy efficient;
3. Ring die can handle almost all of the agricultural wastes and crop straws;
4. Energy saving, in line with green technology, environmental prtection
Your Enquiry
If you’re in need of a Pellet Mill or Production Line you’ve come to the right place. Whether you know exactly what you need, or are in need of some guidance, we are here to help. Please feel free to contact us via Email or filling in the following form.
Hammer crusher is used for crushing small diameter raw materials, which are no more than 50mm such as corn straw, grain, tree branches, and bamboo and so on. After crushing, the diameter of the final products could be 3-5mm which is the optimal size for pelleting or briquetting. Featured with convenient operation and high efficiency, this electric hammer mill is the first choice for farm, middle sized feeding factory and family.
1.Long service life.We adopt mew technology to make hammers and make them wear-resisting and impact resistant.
2.Reasonable design,compact structure and less wearing parts.
3.Low energy consumption, High Abrasion Resistance and environment friendly.
Wood hammer mill can be used to crush hard, soft and weakly corrosive materials. After crushing, raw materials are uniform and with proper moisture content to meet further processing. It is the impacting effect that makes hammer mill crush materials. Wood materials are impacted by high speed rotary hammers as soon as they enter the hammer mill. The broken materials strike repeatedly with the rotating hammers.There are spaces where crushed materials are squeezed out. Because of the reasonable design and high quality materials, wood hammer mill works in a stable way.
Wood hammer mill is popular with many industries and we recommend it as well if you are considering biomass industry investment. Biomass fuel takes wood chips, wood sawdust, peanut stalks, corn straws and so on as materials and wood hammer mill can crush these materials into 3mm-5mm wood materials for pellet mill use.
Wood Pellet production, Feed Pellet production,Wood Briquette production
Rotary Drum Dryer is generally suitable for drying granular materials, and can also be used for drying sticky and paste material by doping partially other material. It decreases the humidity of all kinds of biomass materials efficiently. It is a kind of new drying device that is developed by our company in allusion to the latest requirements in the drying machine market. It saves the energy and the drying cost to the maximum, and is widely used by new biological energy source and farming enterprises.
1.Large drying capacity, high heat protection effect.
2.Low fuel consumption, outstanding energy-saving effect.
3.Stable barrel operation, high stability.
4.High temperature resisting, strong over-load ability.
5.Low pollution, excellent environmental effect.
pellets come from pelletizer need to be cooled down to keep a better strength. The sieve will separate intact pellets from ash, which could be in recycling use.
