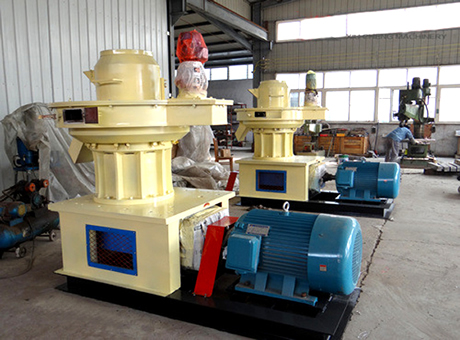

Bamboo Pellet Mill

The driving gear of biomass pellet mill adopts high precision gear transmission. Its reducer adopts famous brand. Its ring die is as thick as 6-8mm. So its working performance is reliable and stable. Its output is higher than the belt type biomass pellet mill by 10-15%. Besides, the ring die and roller of biomass pellet mill are forged of alloy steel. Their wear-resistance is average improved almost twice times than the old ones made by thermal technology, which can maximize saving production costs.

Work principle: when biomass pellet mill works, the main motor drives reducer, and then the reducer drives the roller though spindle. There is ring die on the round of the roller. Sawdust, straw powder, wood powder, and other raw materials enter into the rollers. Materials are pressed by the two rollers with a big pressure, and then they are squeezed out from holes of the die. At the last, the finished products are discharged from the suppressed room by material dialing disc.

Bamboo pellet mill is a new kind of biomass fuel processing equipment. In the market, the bamboo pellet mill with mature technology is less and less, so Fote Machinery reminds you that a good bamboo pellet making machine must meet the following requirements:

1) Low fault during the mechanical production process.

2) The electric energy consumption must be low to produce per ton of bamboo pellet.

3) The physical shape of materials will not be damage in the pressing process.

4) Particle surfaces should be finish, and the hardness is 1.1-1.3 tons per cubic meter.

Features:

1. The pressing roller lubrication part adopts the microcomputer to conduct the real-time monitoring of the operation. When the bearing temperature exceeds the normal use of the temperature, the microcomputer will automatically start the lubricating device for lubrication protection of the bearing.

2. The ring die and roller use alloy steel for forging and precision machining, and the heat treatment process uses carburizing, the carburizing layer up to 2mm, which is nearly ten times of the general heat process, so as to maximize the production cost.

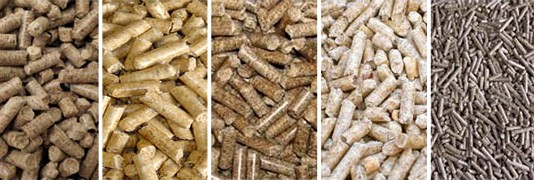

3. The bamboo particles do not contain phosphorus, which has no corrosion of boiler, so that it can prolong the service life of the boiler and the enterprise will benefit a lot.

4. Because bamboo does not produce sulfur dioxide and phosphorus pentoxide when burning, so it will not lead to acid rain, and it has no pollution to the environmental.

5. Pellet fuel is clean and sanitary, which is convenient for feeding. It can reduce the labor intensity of workers and greatly improve the working environment, and the enterprise will reduce labor costs.
